SMT periphery equipment

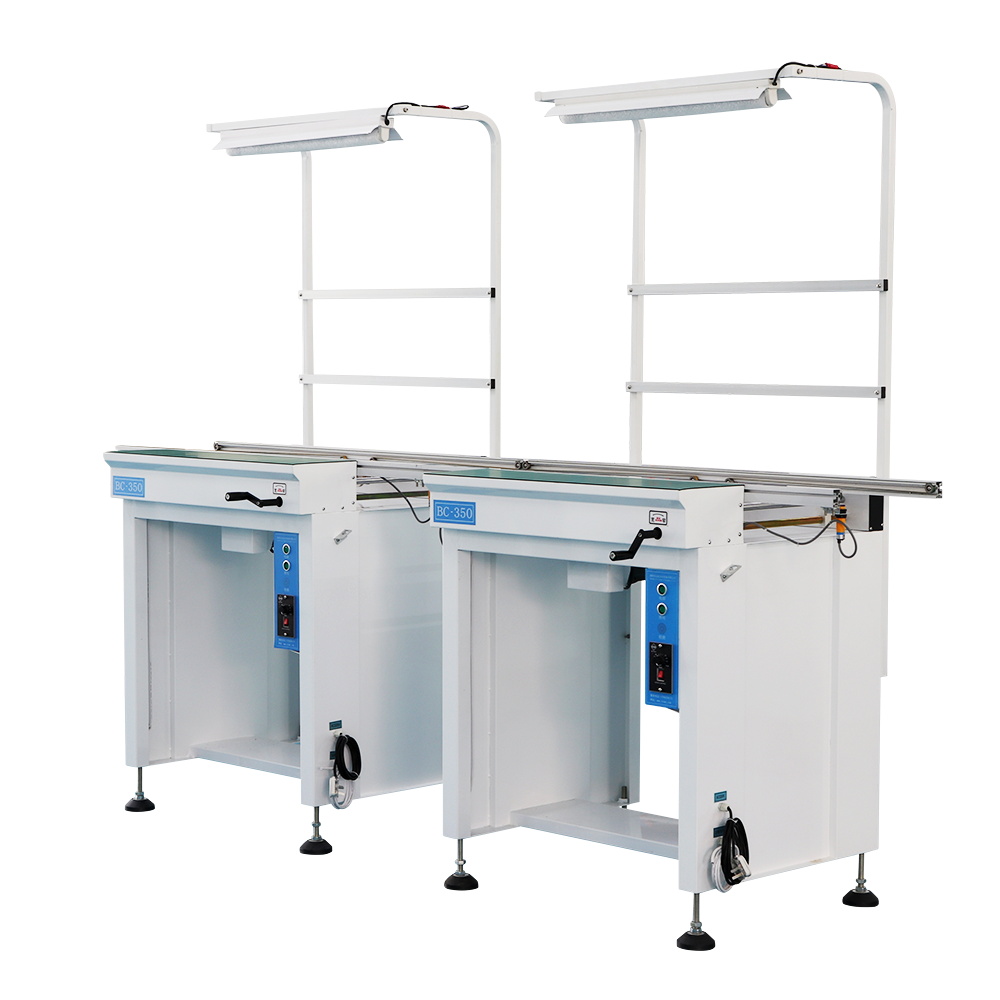

1.2m SMT pcb linking conveyor machine

pcb linking conveyor
0.6m,1.0m,1.2m,1.5m...
1 year warranty
online machine
Product description: 1.2m SMT pcb linking conveyor machine,1.2m SMT pcb linking conveyor machine, pcb conveyor, smt conveyor, smt pcb conveyor, linking conveyor, smt linking conveyor, 1.2m conveyor
INQUIRY

l Exact thread shaft structure to ensure the adjustment of rail width parallel

l Used durable Anti-Static belt with strengthen Aluminum to make sure transport smoothly

l Available to communication with other equipment by SMEMA signal plug

l Auto and manual work mode

l Option Light and SOP rack

Model	BC-350
Outer Dimension	600700910mm-2000700910mm
PCB Width	50~350mm
Transport Height	900±20mm
Transport Direction	L to R or R to L
Speed	Adjustable, 0-10000mm/min
Motor	1P AC220V 50/60HZ 15W
Power Supply	1P AC220V 50/60HZ(option 110V)
Rail length	0.6m,1.0m,1.2m,1.5m,2.0m （or special size）
Control System	Relay Board Option: PLC
Foot switch	Option
Lighting	Option
SOP Rack	Option
Platform material	ESD Rubber Mat
Communication plug	SMEMA Signal plug for up & down line
Weight	Approx.55Kg-85kg
